Anti-Static Sticky Mat
Anti-Static Sticky Mat
Our Anti-Static Adhesive Mat provides dual protection against both particulate contamination and electrostatic discharge (ESD) hazards in sensitive electronic manufacturing and handling environments. Designed with specialized static-dissipative properties, it safely controls static electricity while effectively capturing dust and particles from footwear and wheels, making it an essential component for ESD-protected areas (EPAs) in electronics, semiconductor, and aerospace industries.
Key Features & Specifications
Application
- ESD-protected workstations, cleanroom entrances in electronics manufacturing, semiconductor assembly areas, and any environment requiring both contamination and static control.
Material & Construction
- Base Film: Three-layer composite structure featuring:
- Top Layer: Static-dissipative polymer surface
- Middle Layer: Conductive layer for charge distribution
- Bottom Layer: High-strength, low-linting backing
- Adhesive Layer: Carbon-loaded conductive adhesive with consistent surface resistivity
- Backing: Conductive carbon-loaded vinyl with permanent adhesive for secure grounding
Available Colors
- Blue: Standard ESD identification colors
- Black: For general ESD applications
- White: ESD-safe alternative
- Custom Colors: Available for specific facility coding needs
Performance & Technical Data
| Feature | Description |
|---|---|
| Material | polyethylene |
| Viscosity | 250g-550g |
| Anti-static properties | 106-1010 |
| Size | 18x24'', W450mm × L600mm 18x36'', W450mm × L900mm 18x45'', W450mm × L1143mm 24x36'', W600mm × L900mm 26x45'', W650mm × L1143mm |
| Thickness | 3C-6C |
| Layer | 1-30, 1-60 |
| Color | blue, white, transparent, gray |
| Place of application | Indoor |
How to Use
- Prepare Grounding Point: Ensure proper grounding connection is available
- Clean Surface: Thoroughly clean and dry the floor area
- Install Mat: Remove backing and firmly press mat into position
- Connect Grounding: Attach grounding cord to mat and verified ground point
- Activate Surface: Remove top protective liner

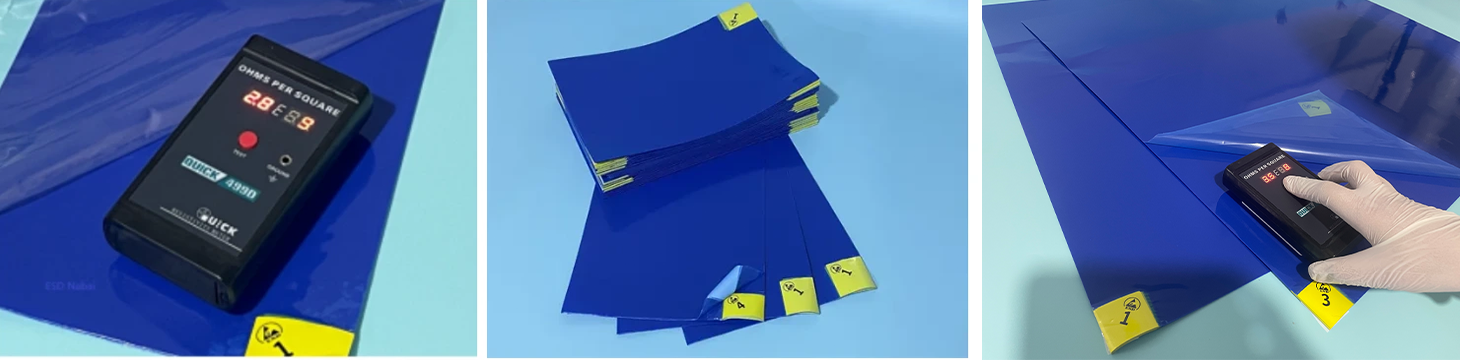

- Verify Function: Test surface resistivity with ESD meter
- Maintain: Replace top layer when contaminated; test regularly
Product Packaging
