Flame Retardant Adhesive Mat
Flame Retardant Adhesive Mat
The FireSafe FR-Series is engineered with flame-retardant polyethylene (FR-PE) as the base material, incorporating environmentally friendly flame-retardant masterbatch. The surface is coated with a water-based pressure-sensitive adhesive (PSA), making it both effective and eco-friendly.
Performance Advantages:
- Reduces fire risks in sensitive environments
- Effectively captures dust and particles from footwear and equipment
- Maintains performance in temperature ranges from -20°C to 60°C
- Non-toxic and safe for human health
- Compatible with most cleanroom flooring materials
Key Features & Specifications
Application
- Electronics manufacturing cleanrooms
- Pharmaceutical production facilities
- Biotechnology laboratories
- Aerospace assembly areas
- Data center entrances
- Any environment requiring both cleanliness and fire safety
Material & Construction
- Surface Material: Premium medical-grade silicone with permanent tacky surface
- Base Structure: Multi-layer composite with reinforced fiberglass mesh
- Backing: Heavy-duty anti-slip rubber backing
- Frame Options: Available with or without aluminum frame for enhanced stability
Key Characteristics:
- Fire Safety: Meets flame-retardant standards with self-extinguishing properties
- Environmental Friendly: Halogen-free formulation, using water-based adhesives
- High Adhesion: Maintains consistent tackiness throughout product life
- Low Contamination: Minimal particle shedding for cleanroom compatibility
- Customizable: Available in various colors, thicknesses, and layer counts
Performance & Technical Data
| Feature | Description |
|---|---|
| Material | polyethylene |
| Viscosity | 250g-550g |
| Performance | Flame retardant (self-extinguishing within 10-30 seconds after removal from flame) |
| Size | 18x24'', W450mm × L600mm 18x36'', W450mm × L900mm 18x45'', W450mm × L1143mm 24x36'', W600mm × L900mm 26x45'', W650mm × L1143mm |
| Thickness | 3C-6C |
| Layers | 1-30,1-60 |
| Color | blue,white,transparent,gray |
| Packing | 30 layers/piece, 10 pieces/box. 60 layers/piece, 5 pieces/box. |
| Place of application | clean room with high requirement of fire prevention |
How to Use:
- Site Selection: Place at entry points of fire-sensitive cleanrooms
- Installation: Unroll mat and ensure firm contact with floor surface
- Activation: Remove protective liner to expose adhesive surface
- Usage: Implement standard foot wiping procedure (3-5 steps)
- Maintenance: Replace top layer when 70-80% covered with contaminants
- Disposal: Follow local regulations for flame-retardant material disposal
Standard Dimensions:
- 18" x 24" (450mm x 600mm)；18" x 36" (450mm x 900mm)
- 18" x 45" (450mm x 1143mm)；24" x 36" (600mm x 900mm)
- 26" x 45" (650mm x 1143mm), Custom sizes available upon request
Packaging Options:
- 30 layers/sheet, 10 sheets/box
- 60 layers/sheet, 5 sheets/box

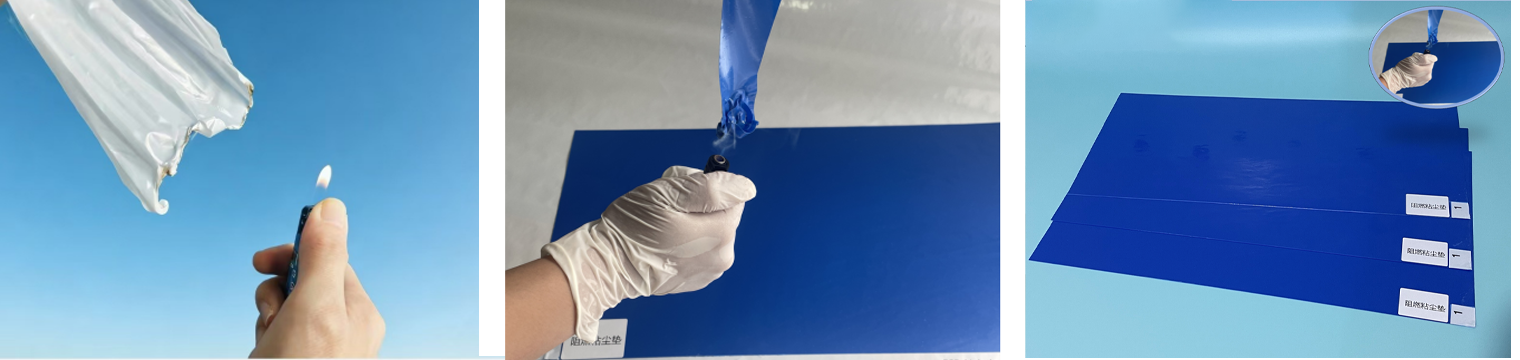

Product Packaging
