Flame Safe Protective Film

Products Flame Safe Protective Film

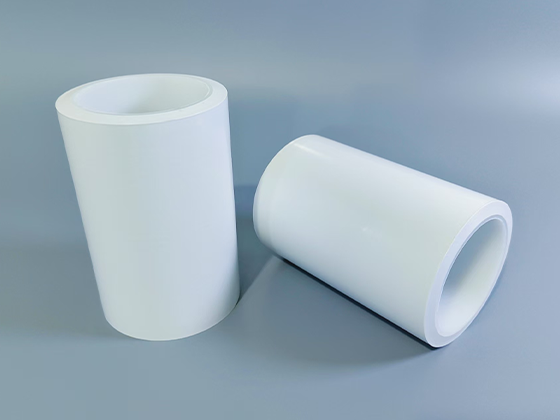

Flame Safe Protective Film

The Flame Safe Protective Film features a multi-layer composite structure engineered with flame-retardant polypropylene core and ceramic microsphere reinforcement. Our proprietary formulation incorporates phosphorus-based intumescent compounds that activate at 180°C, creating a protective char barrier while maintaining optical clarity. The film utilizes silicone-free acrylic adhesive with embedded fire-resistant additives.

Performance Characteristics

  • Tensile Strength: 45 MPa (machine direction)
  • Elongation at Break: 150%
  • Peel Adhesion: 300-500 g/25mm
  • Surface Resistivity: 10^9-10^12 Ω/sq (optional ESD version available)
  • Water Vapor Transmission: <5 g/m²/day

Key Features & Specifications

1. Application Advantages

  • Dual Protection: Combines scratch resistance with fire safety
  • Optical Clarity: Maintains >88% transparency while providing fire protection
  • Easy Application: Standard pressure-sensitive adhesive application
  • Clean Removal: Leaves no residue on most surfaces
  • UV Stability: Resists yellowing under prolonged sunlight exposure
  • Chemical Resistance: Withstands oils, solvents, and cleaning agents

2. Application

  1. Electronics Displays: LCD/LED panel protection in public installations
  2. Transportation: Aircraft/train interior surface protection
  3. Construction: Glass partition protection in commercial buildings
  4. Energy: Solar panel surface protection
  5. Industrial: Equipment surface protection in hazardous areas



3. Performance & Technical Data

Feature Description
Material High-quality polyethylene
Adhesive Strength Ultra Low, Medium, High
Function Flame retardant (self-extinguishing within 10-30 seconds after removal from flame)
Anti-static Properties 106-1010
Inner Size 76.5mm
Thickness 4-6C
Color Transparent, Blue, White, Gray
Length 50m/roll (Customization supported)
Width According to customer requirements
Packing Carton box (Customization supported)



4. How to Use

  1. Surface Preparation: Clean with isopropyl alcohol and lint-free cloth
  2. Film Application: Use squeegee technique from center outward
  3. Edge Sealing: Optional fire-rated edge tape available for critical applications
  4. Activation: Fire-resistant properties are inherent, requiring no activation
  5. Removal: Standard peel-off method (180° angle recommended)

5. Fire Performance

  • Auto-extinguishes within 5 seconds (UL 94 V-0 certified)
  • Smoke Density: <100 (ASTM E662)
  • Heat Release Rate: <65 kW/m² (ISO 5660-1)
  • Oxygen Index: >32%
  • Zero flaming droplet formation during vertical burn tests
  • Char expansion ratio: 10:1 at 300°C

6. Quality Certifications

  1. Fire Safety: UL 94 V-0, EN 13501-1 Class B-s1,d0
  2. Optical: ISO 9050 light transmission standards
  3. Environmental: RoHS, REACH SVHC compliant
  4. Quality System: ISO 9001:2015 manufacturing

7. Customization Options

  1. Custom widths and lengths
  2. Die-cut shapes with kiss-cut backing
  3. Printed warning labels or company logos
  4. Special adhesive formulations for different substrates
  5. Anti-fog or anti-glare surface treatments

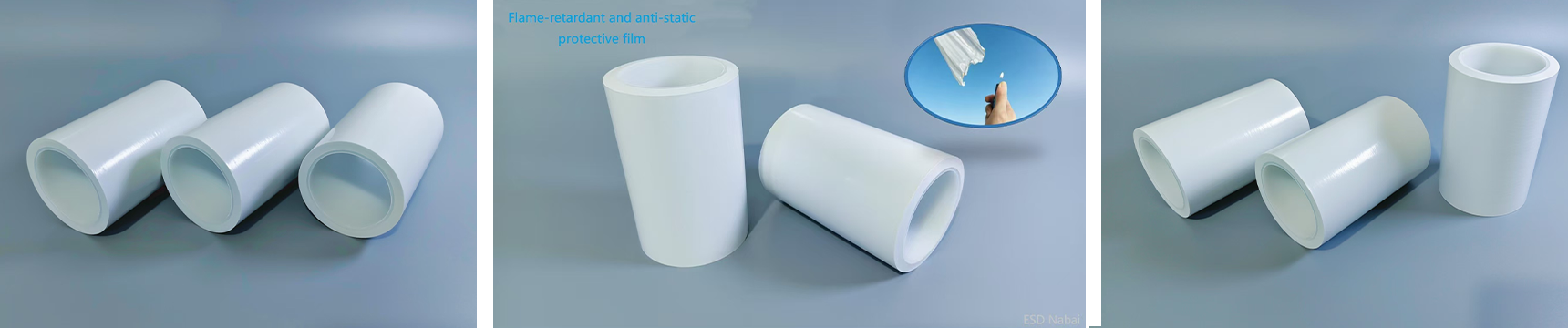

Product Packaging

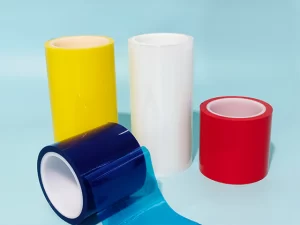

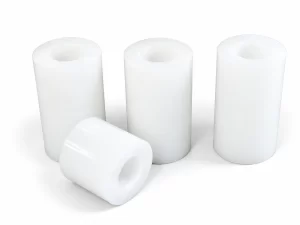

Related Products
