Four Corners Peel-Off Sticky Mat
Four Corners Peel-Off Sticky Mat
Our Four-Corner Peel Adhesive Mat revolutionizes cleanroom contamination control with its innovative segmented design. Featuring four distinct, individually peelable corner sections, this advanced sticky mat extends service life and reduces replacement frequency by allowing targeted renewal of high-traffic areas. This intelligent design delivers superior cost-efficiency while maintaining consistent particle capture performance at critical cleanroom entry points.
Key Features & Specifications
Application
- High-traffic cleanroom entrances, gowning areas, and material transfer stations in semiconductor, pharmaceutical, and biotechnology facilities with ISO Class 5-8 requirements.
Material & Construction
- Base Film: Premium-grade, tear-resistant Polyethylene (PE) with precision perforation technology
- Adhesive Layer: Uniformly distributed high-tack acrylic adhesive across all four quadrants
- Segment Design: Four identical triangular sections meeting at center point
- Backing: Enhanced non-slip rubber backing with full-area coverage
Available Colors
- Blue: Standard cleanroom identification
- White: Maximum contamination visibility
- Transparent: Pharmaceutical and biotech applications
- Gray: General industrial clean areas
Performance & Technical Data
| Feature | Description |
|---|---|
| Material | polyethylene |
| Viscosity | 250g-550g |
| Size | 18x24'', W450mm × L600mm 18x36'', W450mm × L900mm 18x45'', W450mm × L1143mm 24x36'', W600mm × L900mm 26x45'', W650mm × L1143mm |
| Thickness | 3C-6C |
| Layers | 1-30,1-60 |
| Color | blue,white,transparent,gray |
| Packing | 30 layers/piece, 10 pieces/box. 60 layers/piece, 5 pieces/box. |
| Place of application | Indoor |

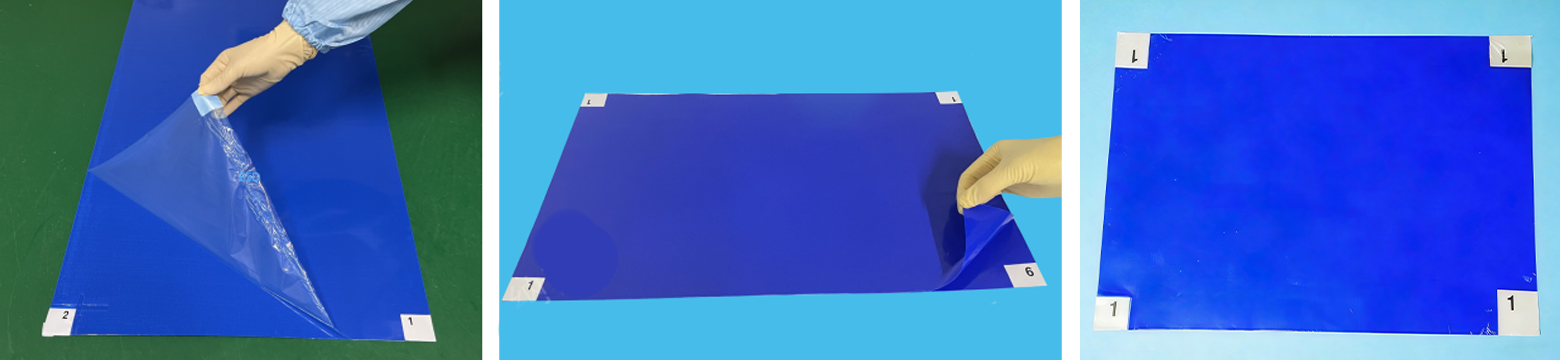

How to Use
- Position Mat: Place mat at cleanroom entrance with arrows pointing toward traffic flow
- Remove Backing: Peel off bottom protective liner completely
- Secure to Floor: Press mat firmly onto clean, dry surface
- Activate First Corner: Remove protective film from one corner section only
- Rotate Usage: When first corner shows significant contamination, peel it off and activate the next corner
- Continue Rotation: Repeat process clockwise or counterclockwise through all four corners
- Full Replacement: When all corners are exhausted, replace entire mat
Product Packaging
