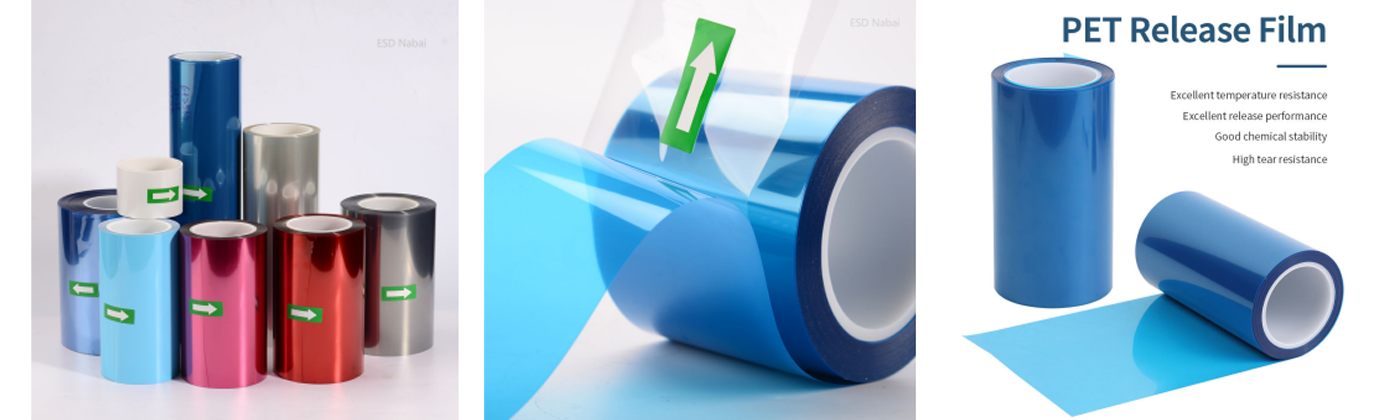

Silicone-Coated PET Film
Silicone-Coated PET Film
Made from a special polyester film as the substrate, this product undergoes a complex coating process to apply a functional silicone coating to its surface. It is specifically designed to protect product surfaces in cleanroom environments or for final product applications. It features excellent transparency, easy peeling without residue, and strong temperature and weather resistance.
Widely used in industries such as mobile phones, tablets, hardware, PCBs, FPCs, electronic products, foam, glass lenses, acrylic sheets, high-gloss injection molded parts, and touchscreen modules.
Key Features & Specifications
Application
- Critical for protecting sensitive displays, optical lenses, touch panels, glass surfaces, and finished products during manufacturing, storage, and shipping.
Material & Construction
- Top Layer:Tough, scratch-resistant silicone with anti-static properties
- Middle Layer:Cushioning silicone foam for impact absorption
- Adhesive Layer:Low-tack, residue-free silicone adhesive
- Backing: Dual-layer release liner for easy application
- Thickness: 25u,50u,75u,100u
- Width: 1040mm,1090mm
Available Options
- Optical Grade: >92% light transmission for display applications
- Industrial Grade: Maximum durability for machinery protection
- Colors: Blue, Red, Transparent
Performance & Technical Data
| Feature | Description |
|---|---|
| Common thickness | 25u, 50u, 75u, 100u, 125u |
| Common width | (Customization supported) 1040mm、1090mm (Customization supported) |
| Common Color | Blue, red, transparent, white (Customization supported) |
| Common viscosity | 0-1000g |
| Packing | Palletized packaging and carton box |
How to Use
Can be used alone to remove dust or in conjunction with a silicone sticky roller
Clean Surface: Ensure protected surface is dust-free
Remove First Liner: Peel off initial release layer
Apply Film: Carefully position and apply to surface
Remove Second Liner:Peel off final release layer
Smooth Surface: Use squeegee to eliminate air bubbles
Remove After Use: Peel off cleanly without residue
