A Tacky Floor Mat for Cleanroom should be specified in a clear sequence: size first, then color, tack level, and finally layer configuration. This order is practical because the mat must first fit the traffic path, then support visual management, provide suitable particle pickup, and finally match the facility's maintenance frequency.

At Nabai, we manufacture multi-layer polyethylene tacky mats and reusable silicone sticky mats for semiconductor, electronics, medical device, automotive, LED, and precision-manufacturing environments. The following values are practical project references rather than universal cleanroom standards; final specifications should be matched to the actual entrance, traffic, contamination load, and internal facility requirements.

1. Size Customization: Match the Mat to the Traffic Path

Size is the first parameter to define because even a high-performance Tacky Floor Mat for Cleanroom is ineffective if personnel or trolley wheels can bypass the adhesive area.

Nabai's standard PE tacky mat sizes include:

•450 × 600 mm / 18 × 24 in

•450 × 900 mm / 18 × 36 in

•450 × 1143 mm / 18 × 45 in

•600 × 900 mm / 24 × 36 in

•650 × 1143 mm / 26 × 45 in

The main design rule is simple: width controls traffic coverage, while length controls contact opportunity.

Industry / Area	Recommended Reference Size	Main Reason
Semiconductor gowning entrance	600 × 900 mm or 650 × 1143 mm	Wider coverage for controlled personnel flow
PCB / electronics workshop	450 × 900 mm or 600 × 900 mm	Suitable for personnel and light carts
Medical-device clean area	450 × 900 mm	Balanced footprint for controlled entrances
LED assembly area	450 × 600 mm or 450 × 900 mm	Fits compact production entrances
Automotive electronics area	600 × 900 mm or 650 × 1143 mm	Better for mixed personnel and trolley traffic
Cart transfer point	650 × 1143 mm or custom	Greater wheel-contact coverage

For narrow entrances, a 450 mm width may be sufficient. For mixed traffic or carts, 600–650 mm widths usually provide better contact coverage. Where wheel tracks or door openings fall outside standard dimensions, Nabai can customize the mat length and width.

2. Color Customization: Use Color for Visual Control

Color does not affect the removal of particles directly, but does assist with visibility in zones, Detectability and identification contamination areas and production zones.

Nabai offers blue, white, transparent, gray and custom colors.

Industry / Application	Typical Color Reference	Practical Purpose
Semiconductor	Blue / transparent	Common cleanroom identification and controlled appearance
Electronics / PCB	Blue / gray	Clear zone recognition with practical dirt visibility
Medical device	White / blue	Easier visual inspection of surface contamination
LED production	Blue	Consistent clean-area coding
Automotive electronics	Gray / blue	Industrial appearance with controlled zoning
Precision optics	Transparent / white	Maintains floor appearance and highlights particles

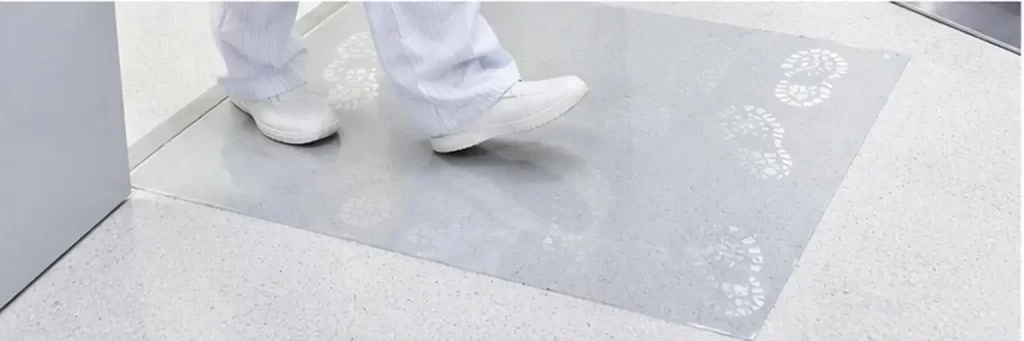

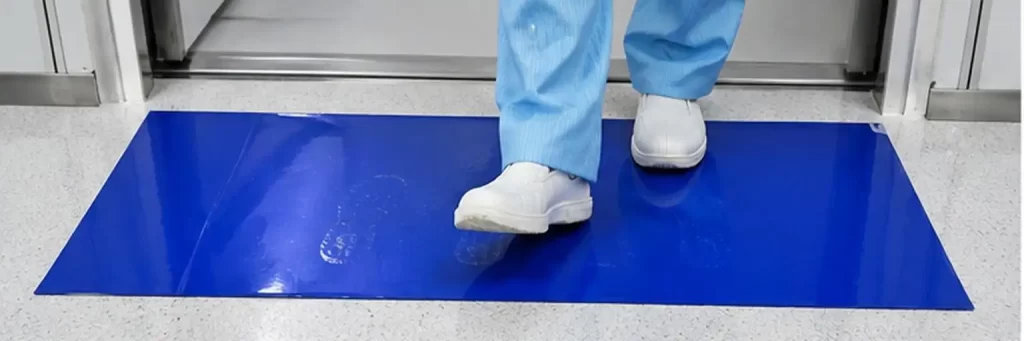

White makes dust and debris easier to observe, which can help operators decide when a layer should be removed. Blue is widely used for general cleanroom zoning. Gray reduces the visual impact of light surface contamination. Transparent is useful where floor markings or aesthetics need to remain visible.

For OEM programs, Nabai can also produce custom colors for factory zoning, distributor branding, or private-label projects.

3. Tack Level Customization: Balance Pickup and Release

The tack level is the most important functional parameter of a Tacky Floor Mat for Cleanroom because it controls how strongly particles transfer from shoes or wheels to the mat.

Nabai's PE tacky mats can be configured within a 250–550 g tack reference range.

A higher value is not automatically better. Excessive tack can increase shoe pull, trolley resistance, or adhesive transfer, while insufficient tack may reduce particle pickup.

Application	Practical Tack Reference	Selection Logic
Light personnel traffic	250–300 g	Easier shoe release
General electronics cleanroom	300–400 g	Balanced particle pickup and walking comfort
Medical-device production	300–400 g	Stable general-purpose entrance control
Semiconductor personnel entrance	350–450 g	Higher fine-particle pickup requirement
Trolley / wheel transfer zone	400–500 g	Stronger contact with wheel surfaces
High-contamination industrial entry	450–550 g	Higher pickup where surface loading is heavier

These values should be treated as selection references, not fixed industry standards.

When selecting tack, Nabai accounts for:

•Particle Size: Thinner or heavier contaminations result in a binding requirement for stronger surface adhesion.

•Traction Types: Trolley wheels require a release behavior that is completely different from shoes.

•Floor Contact and Conditions: Responsiveness of an adhesive to binding varies with operating conditions.

•Risk of Residue: The adhesive should remain on the mat to eliminate transfer to shoes or trolley wheels.

Nabai has added a permanent tacky silicone sticky mat to the lineup to address the needs of reusable applications. It captures fine dust and other particles through molecular attraction and is easily washable for continued use.

4. Layer Customization: Match Maintenance Frequency to Traffic

After size, color, and tack have been defined, layer count determines how the Tacky Floor Mat for Cleanroom will be maintained.

Nabai's standard polyethylene configurations include:

•30 layers per piece

•60 layers per piece

•30-layer mats: 10 pieces per box

•60-layer mats: 5 pieces per box

Industry / Traffic Level	Recommended Layer Reference	Maintenance Reason
Low-traffic laboratory entrance	30 layers	Lower daily contamination loading
Medical-device clean area	30 layers	Predictable personnel flow
Electronics assembly	30 or 60 layers	Depends on shift traffic
Semiconductor entrance	60 layers	More renewable surfaces for frequent use
Automotive electronics	60 layers	Better for mixed personnel and trolley traffic
High-volume transfer area	60 layers or reusable silicone	Reduces full-mat replacement frequency

A 60-layer Tacky Floor Mat for Cleanroom does not provide twice the particle-removal efficiency of a 30-layer mat. It simply provides twice as many peel-away surfaces before the complete mat is replaced.

For facilities seeking to reduce disposable material consumption, Nabai's reusable silicone mat is another option. The structure combines a medical-grade silicone tacky surface, reinforced fiberglass composite base, anti-slip rubber backing, and an optional aluminum frame. After contamination builds up, the surface can be washed, dried, and returned to service.

Practical Specification Examples

A semiconductor personnel entrance may use:

•Size: 650 × 1143 mm

•Color: Blue

•Tack: 350–450 g

•Layers: 60

A medical-device clean area may use:

•Size: 450 × 900 mm

•Color: White or blue

•Tack: 300–400 g

•Layers: 30

A high-traffic electronics trolley zone may use:

•Size: 650 × 1143 mm

•Color: Gray or blue

•Tack: 400–500 g

•Layers: 60, or reusable silicone construction

Conclusion

A custom Tacky Floor Mat for Cleanroom should be specified in the order of size, color, tack level, and layer count. Size determines contact coverage, color supports visual control, tack determines particle pickup and release behavior, and layer count defines maintenance capacity.

Nabai supports custom dimensions, colors, 250–550 g tack configurations, 30- or 60-layer PE mats, and reusable silicone sticky mat solutions. Buyers can provide entrance dimensions, traffic type, industry application, and maintenance requirements so Nabai can help define a practical Tacky Floor Mat for Cleanroom specification before production.

FAQs

Q1 What sizes are available for Tacky Floor Mat for Cleanroom by Nabai?

Nabai offers 450 × 600 mm, 450 × 900 mm, 450 × 1143 mm, 600 × 900 mm, and 650 × 1143 mm standard sizes. Other dimensions can be made in line with door sizes and the paths of trolleys and cleanrooms.

Q2 What tack levels are available for Tacky Floor Mat for Cleanroom by Nabai?

Nabai offers PE tacky mats that have a tack level range of approximately 250–550 g. For lower tack levels, a milder traffic flow of personnel may be appropriate. Higher tack levels may be more appropriate for heavier soiling or for use over trolley wheels.

Q3 Does Nabai produce both 30-layer and 60-layer tacky mats?

Yes. Nabai offers Cleanroom Tacky Floors matting made of 30 layers, and 60 layers. The 30-layer tacky mat flooring is more often used in a controlled or low traffic area. The 60 layers provide more adhesive surface.

Q4 Is a 60-layer tacky mat Cleanroom flooring mat better than a 30-layer mat?

Not necessarily. Both use similar tack levels and principles of particle capture. The 60-layer mat increases the surface area that can be peeled off, thereby requiring less replacement of the mat.

Q5 What custom colors does Nabai offer?

The standard colors offered are blue, white, clear, and gray. Additionally, for cleanroom zoning, factory identification, distributor branding, and private label projects, custom colors may be ordered.
