Antistatic PE foam packaging is polyethylene foam that combines physical cushioning with a controlled electrostatic property, protecting sensitive components from both impact and static-related damage during transit and storage. Choosing the right material depends on the ESD classification you actually need, the component's geometry and fragility, and the documentation your supplier can provide. This guide covers the material's construction, the difference between antistatic and other ESD foam types, the formats available, and the specifications to request from a supplier.

What Is Antistatic PE Foam Packaging?

Polyethylene (PE) foam is a lightweight material widely used for cushioning; most packaging grades are closed-cell, which gives the foam a consistent structure. In antistatic PE foam, the material is formulated or treated to reduce the generation and accumulation of static charge on its surface. That makes it useful for packaging ESD-sensitive items such as PCBs, semiconductor components, displays, and precision electronic assemblies. Confirm the foam construction with your supplier, because density and cell structure affect compression and cushioning performance.

For the packaging engineer, the important point is that mechanical protection and electrostatic protection are two separate requirements. The foam's density and thickness determine how well it absorbs shock and isolates vibration; its electrical properties determine how safely it behaves around static-sensitive components. A thick foam that cushions perfectly may still generate or hold charge, and an antistatic foam with no cushioning will not protect a fragile part from impact.

Antistatic PE foam is commonly supplied as sheets, rolls, pads, blocks, or die-cut inserts. The right format depends on the shape of the component, the interior dimensions of the shipping carton, and whether the packaging will be used once or reused.

Note that PE foam is not the same product as PE anti-static protective film. Film is a thin surface-protection layer; foam is a thicker cushioning material. If your packaging design needs a surface film to protect a product's finish, see Nabai's range of pe anti static protective film.

Antistatic vs. Conductive vs. Static-Dissipative vs. Shielding Foam

Packaging suppliers use "ESD-safe" and "antistatic" loosely, but the terms describe different electrical behaviours. The four classes below are the ones a buyer will encounter when specifying foam packaging.

Resistance values matter, and units matter even more. Surface resistance is expressed in ohms; surface resistivity is expressed in ohms/square. These are not interchangeable figures. When a supplier gives you a number, ask for the unit, the test method, and the conditions under which it was measured. Without that context, a resistance value tells you very little.

Triboelectric charging is the specific risk that antistatic foam is meant to manage: when two materials contact and separate, charge can transfer between them. A foam with antistatic properties is designed to limit that charge generation when it touches a component or when the component moves inside the packaging.

Two standards are useful reference points. IEC 61340-5-3 sets out the properties and requirements for packaging used to protect electrostatic-discharge-sensitive (ESDS) devices through production, transport, and storage. ANSI/ESD S541-2019 defines packaging-material requirements for the protection of ESDS items. These standards do not tell you which foam to buy; they give both buyer and supplier a common framework for specifying and verifying packaging performance.

Colour is not a specification. Pink foam is often antistatic, but colour alone does not prove that a material meets any electrical requirement. For a wider view of the materials available in this category, see Nabai's esd materials overview.

Common PE Foam Packaging Formats and Applications

The right format depends on how the component moves through your operation.

• Sheets — flat foam stock cut to size; useful for layering between boards or wrapping components.
• Rolls — continuous foam for wrapping, interleaving, or lining cartons.
• Pads and blocks — thicker sections for shock absorption under heavy or fragile items.
• Die-cut inserts and custom trays — foam shaped with cavities that hold a specific component in place.

These formats are commonly used for PCB and electronics assembly, semiconductor components, display panels, battery and solar components, and precision machined parts. For each format, define the component geometry, box interior dimensions, weight and fragility, and whether the package is single-use or reusable. A die-cut insert may be the right choice for a high-value component with an irregular shape; a simple sheet may be enough for flat boards separated in a carton.

Key Specifications to Request from an Antistatic PE Foam Packaging Supplier

Before you approve any antistatic PE foam, ask the supplier for a specification package, not just a marketing description. Request the following information in writing:

• Material and construction — polymer type, closed-cell or open-cell structure, density, and thickness.
• Dimensions and format — sheet size, roll width and length, or insert geometry.

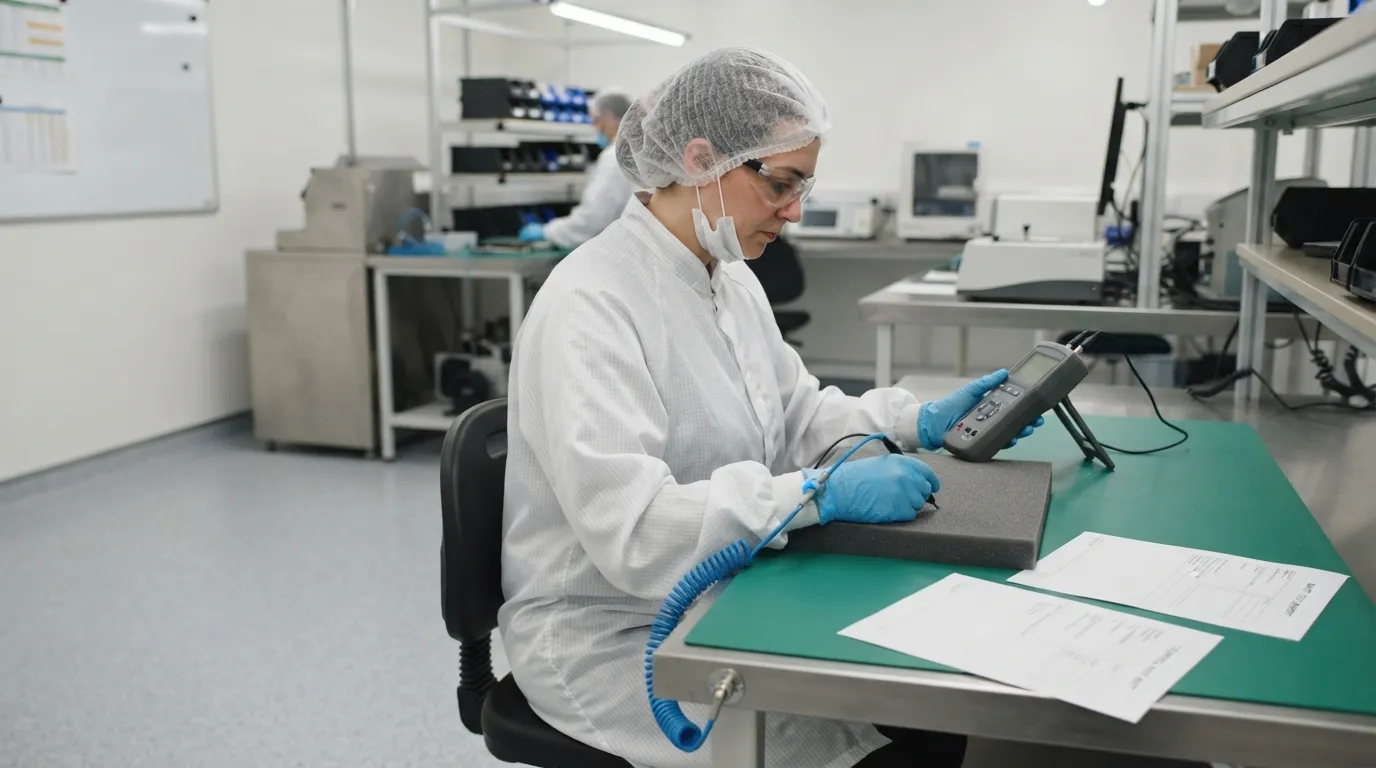

• Electrical specification — surface resistance or surface resistivity, with the exact unit (ohms vs ohms/square) and the test method used.
• Physical performance — cushioning behaviour, compression, and any flammability rating, supported by a test report.
• Compliance statements — RoHS, REACH, or any other product-specific claim, with documentary evidence.

Standards such as IEC 61340-5-3 and ANSI/ESD S541 give you the language to ask the right questions. Ask the supplier to map its test data to the relevant standard rather than accepting a screenshot of a meter reading.

How to Evaluate an Antistatic PE Foam Packaging Supplier

A structured qualification process protects you from inconsistent material and vague claims. A simple five-step approach works for most electronics and industrial packaging programs:

1. Request samples and, if the foam will be die-cut, a drawing or sample insert for fit approval.
2. Require a TDS and a batch test report for the exact product offered.
3. Confirm batch consistency — ask how often the supplier tests and whether future lots will ship with the same documented test method.
4. Check commercial terms — MOQ, lead time, packaging format, and delivery terms.
5. Send a formal RFQ and evaluate the supplier's response against the specification package.

Your RFQ should include:

• Component dimensions, weight, and fragility
• ESD sensitivity and the required ESD classification
• Packaging format (sheet, roll, pad, or custom insert)
• Thickness and density
• Electrical-property requirement, with units (ohms or ohms/square)
• Documentation requirements (TDS, batch test report, SDS, compliance statements)
• Anticipated volume and delivery schedule

A single test report covers one batch. It proves that batch met the specification; it does not prove that every future shipment will behave the same way. Ask how the supplier's quality process ensures repeatability.

If you are ready to evaluate a supplier for your application, contact Nabai to confirm product availability, specifications, and documentation for antistatic PE foam packaging.

Limitations — When Foam Alone Is Not Enough

Antistatic PE foam is not a universal ESD solution. A foam that controls triboelectric charging does not automatically shield a component from electrostatic fields or direct discharges. If your product needs that level of protection, foam alone is not enough; you need shielding packaging from a qualified esd shielding bag manufacturer as part of the packaging system.

A complete ESD packaging specification often combines materials: antistatic foam for cushioning and charge control, a shielding bag for field and discharge protection, and a carton for structural protection. Evaluate the whole system, not just the foam, before you approve a packaging design.

Start with the component's requirements, verify the supplier's data, and specify the packaging system as a whole rather than relying on one material.
