An ESD shielding bag is a multilayer, low-charging package that uses a metalized shielding layer to protect ESD-sensitive components from electrostatic discharge during storage and transport. It is not the same as an anti-static bag, and choosing the right manufacturer means verifying construction, electrical performance, and supporting documentation — not just accepting the phrase "ESD bag."

Whether you are sourcing for PCB assembly, semiconductor components, or contract manufacturing, the real question is what evidence the supplier can provide for the exact bag you intend to buy. This guide explains what a shielding bag actually does, how to distinguish it from cheaper alternatives, and what to verify before sending an RFQ.

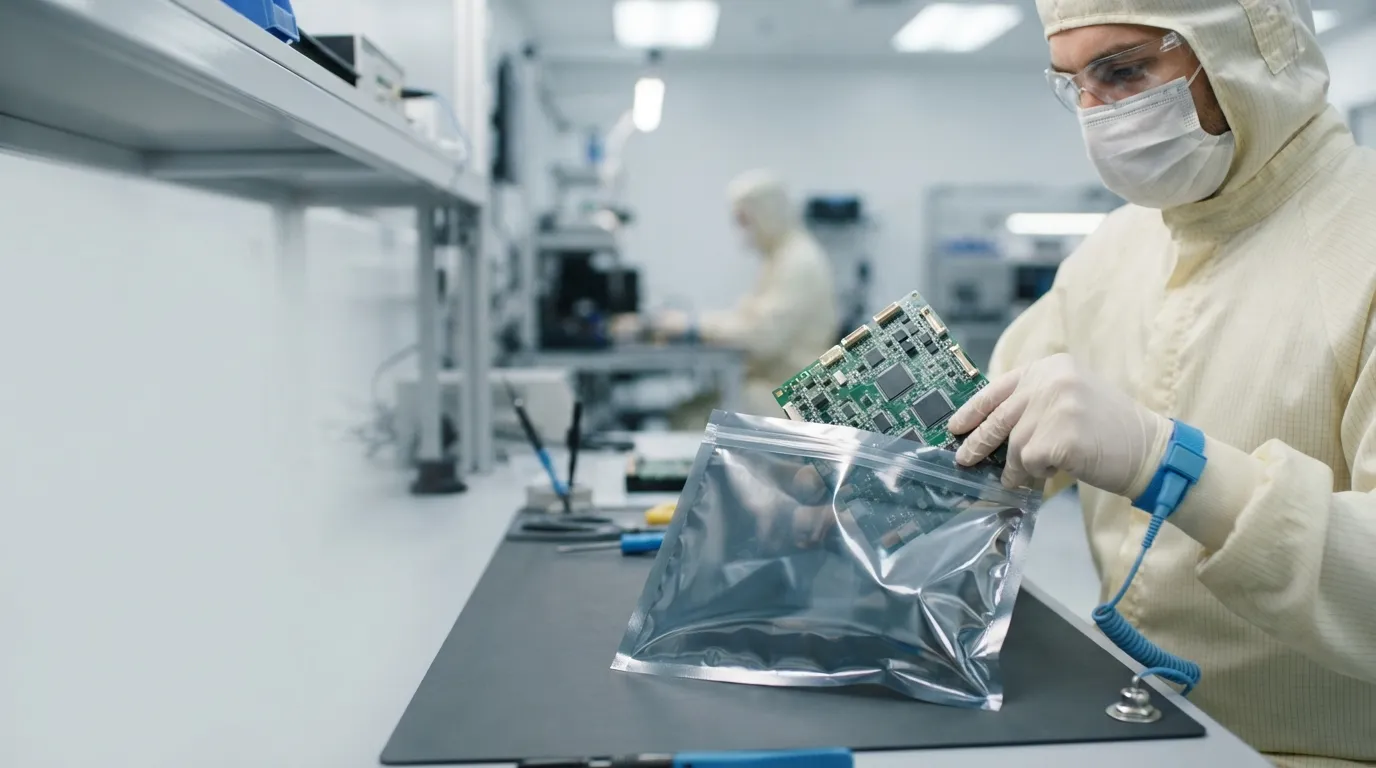

What Is an ESD Shielding Bag?

An ESD shielding bag is a packaging product designed to protect electrostatic discharge-sensitive (ESDS) items during handling, storage, and shipment. The ANSI/ESD S541 standard from the EOS/ESD Association defines packaging-property requirements for ESD protective packaging used through production, transport, and storage.

The key word is "shielding." A true shielding bag contains a conductive or metalized layer that blocks external electrostatic fields and attenuates the energy of a direct discharge before it reaches the contents. This is different from a pink anti-static bag, which only reduces triboelectric charge generation on the bag's surface.

For a refresher on the broader principles of static control, see what is esd protection.

How a Static-Shielding Bag Works

A static-shielding bag operates like a portable Faraday cage. A metalized layer — typically vacuum-deposited aluminum on polyester film — creates a conductive envelope around the component. When the bag is exposed to an electrostatic field or a direct discharge, the metal layer distributes the charge across its surface, preventing the field from reaching the contents.

According to SCS (Desco Industries), this metallized construction is specifically designed to provide shielding protection for ESD-sensitive devices during shipment and storage. The bag does not need to be grounded to provide this protection in most transport and handling scenarios.

ESD Shielding Bag vs Anti-Static Bag vs Moisture-Barrier Bag

Bag Type	Primary Protection	How It Works	Typical Use
Pink anti-static bag	Prevents triboelectric charge buildup on the bag surface	Low-charging pink polyethylene dissipates surface charge slowly	Short-term handling and storage of less sensitive components
ESD shielding bag	Blocks external electrostatic fields and discharges	Metalized layer creates a Faraday-cage effect around the contents	Safe transport and storage of sensitive PCBs, ICs, and other ESDS items
Moisture-barrier bag (MBB)	Limits moisture vapor transmission into the package	Metalized or foil laminate with sealed closures	Long-term storage of moisture-sensitive devices, usually with desiccant and humidity indicators

These functions are not interchangeable. A shielding bag controls static electricity; it does not necessarily control moisture. A moisture-barrier bag may be ESD-safe, but that must be confirmed from its own specification — it cannot be assumed.

ESD Shielding Bag Construction and Materials

Most ESD shielding bags share the same fundamental construction: a metalized polyester film that provides the shielding function, bonded to a low-charging polyethylene layer that contacts the component, with an additional outer film that protects the metalized surface from abrasion and handling damage.

The exact laminate and layer sequence matters because it directly affects flexibility, seal strength, puncture resistance, and how well the bag survives production and shipping environments. A manufacturer should be able to describe the construction of the bag it supplies, not just its dimensions and price.

Metalized Layer and Faraday-Cage Effect

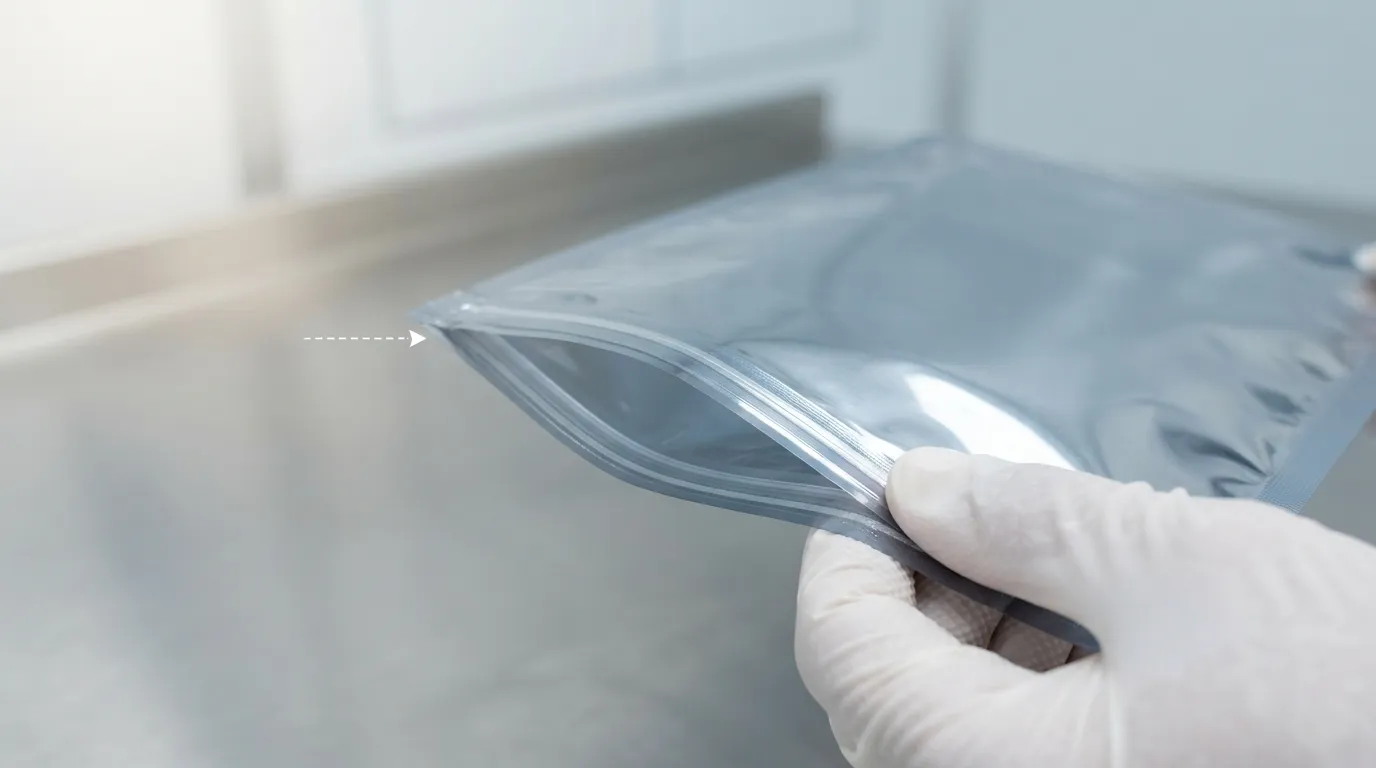

The metalized layer is what separates a shielding bag from every other static-control bag. Usually formed by depositing aluminum onto polyester, this layer conducts electrostatic fields around the package contents. During a discharge event, the energy is distributed across the metal surface, substantially reducing the voltage that reaches the component inside.

Contact Layers and Laminate Choices

The layer that touches the component is typically a low-charging polyethylene film designed not to generate static charge as the component slides in or out. An outer mechanical layer — often polyester or a thicker polyethylene — protects the metalized surface from creasing, scratching, and punctures.

Laminate choice also influences practical handling. It determines how cleanly the bag heat-seals, how stiff or flexible the bag feels, and how well it holds up to repeated opening and closing if a zip closure is used.

Key Specifications to Verify Before Ordering

When reviewing a datasheet or product listing for an ESD shielding bag, check these specifications carefully. Each value should be stated with its unit and test method.

Specification	What It Tells You	Unit / Method
Inside dimensions	Whether the component fits correctly	Inches or millimetres; confirm inside vs outside
Thickness	Material strength and stiffness	mil or micron
Surface resistance	How easily charge dissipates across the material surface	Ohms, measured per a defined test method
Shielding energy	How much discharge energy the bag attenuates	nanojoules (nJ), tied to a specific shielding test
Static decay	How quickly charge dissipates from the material	Seconds, with the test method stated
Seal strength	Whether heat seals will survive handling	Force per width, e.g. grams per inch

Do not accept a single "ESD compliant" or "anti-static" claim as a substitute for these values. A datasheet without units or test methods is incomplete.

Dimensions, Thickness, and Closure Type

• Confirm whether the stated size is the inside or outside dimension. A component that fits the bag's outside measurement may not fit inside.
• Thickness is usually expressed in mil or micron. A thicker bag is more durable but also stiffer and more expensive.
• Closure options include open-top, zip-top, and heat-sealable. Zip-top bags allow inspection and reuse; heat-sealed bags provide a permanent, tamper-evident closure.
• If the component has sharp leads or edges, specify a puncture-resistance requirement in your RFQ.

Electrical Performance: Shielding, Surface Resistance, and Static Decay

Three separate electrical properties matter, and they should not be conflated:

• Surface resistance characterizes the bag's ability to dissipate surface charge. It is typically measured per ANSI/ESD STM11.11 and reported in ohms.
• Discharge shielding measures how well the bag attenuates a direct electrostatic discharge. A common method is ANSI/ESD STM11.31.
• Static decay measures how quickly a charge dissipates from the material surface.

A bag with an acceptable surface-resistance value may still fail as a shield. The metalized layer is what provides discharge protection; surface resistance alone does not confirm it.

Moisture Protection and Cleanliness

An ESD shielding bag controls static electricity. It does not automatically control moisture vapor. If the components are moisture-sensitive and will be stored for an extended period, you may need a genuine moisture-barrier bag with desiccant and a humidity-indicator card.

Cleanliness is a separate requirement. If the bags will be used in a cleanroom environment, ask the supplier whether the bag, its production process, and its packaging are qualified for that specific classification.

How to Evaluate an ESD Shielding Bag Manufacturer

The word "manufacturer" means little unless the supplier can support it with evidence. Use this verification process:

1. Ask how the bag is constructed. A genuine shielding bag contains a metalized layer within a defined laminate structure. If the supplier cannot describe the construction, treat the product as suspect.
2. Request a TDS for the exact bag model. The Technical Data Sheet should state material layers, thickness, dimensions, electrical properties, and test methods.
3. Request a batch test report. A TDS describes the product type; a batch report verifies the actual lot being supplied. These are not the same document.
4. Check lot traceability. Bags should carry a lot code or identifier that ties them to production records and test results.
5. Confirm the closure and sealing method. A heat-sealable bag is only as good as the sealing process used at your facility.
6. Determine whether the supplier manufactures or resells. A reseller can provide a useful standard product, but it cannot modify specifications or control production quality the way the original manufacturer can.

For context on ESD-safe materials within a broader packaging and contamination-control strategy, review the range of esd safe materials available from Nabai.

Manufacturer vs Reseller: What to Verify

If the supplier claims to be a manufacturer, ask:

• Where the bags are produced, and whether coating, laminating, and converting are controlled in-house.
• Whether custom dimensions and constructions are available.
• Whether current product-level test data exists for the bag type you are considering.
• Whether samples of the exact construction can be provided before production.

A reseller can still be a valid source for standard stocked sizes. But for custom bags, batch traceability, or reliable product-level evidence, the original manufacturer has more control over the answer.

Documents You Need: TDS, Batch Test Reports, and Declarations

Document	What It Is	What It Does Not Prove
TDS (Technical Data Sheet)	Describes the product's intended construction and typical specifications	Does not verify the specific lot you receive
Batch test report	Contains measured results for a named production batch	Does not cover other batches
Declaration or certificate	States that a product meets a standard or specification	Does not by itself prove the statement unless backed by test data
MSDS/SDS	Safety and handling information	Not evidence of electrical performance

Ask which documents are available for the exact bag model and lot before ordering.

Standards and Certifications: What They Do and Don't Prove

Standard or Method	Scope
ANSI/ESD S541	Defines packaging-property requirements for ESD protective packaging used through production, transport, and storage
IEC 61340-5-3	International packaging-property standard in the IEC 61340-5 series for ESDS items
ANSI/ESD STM11.11	Test method for surface resistance of static-dissipative planar materials
ANSI/ESD STM11.31	Test method for evaluating the discharge-shielding performance of bags

A supplier that references these standards is indicating the framework it works to, which is useful. But the reference alone does not prove that the specific bag meets them. Ask for the test report that corresponds to the product and lot you are ordering.

Common Sourcing Mistakes and How to Avoid Them

• Assuming "ESD bag" means shielding bag. Many suppliers use the term loosely. Confirm the construction.
• Choosing on price without a spec sheet. If the price is far below comparable products, check whether a metalized layer actually exists.
• Mixing up anti-static and shielding. Pink anti-static bags are inexpensive and useful — for the right purpose. They are not shielding bags.
• Ignoring test methods. A resistance value without a stated test method cannot be compared against another supplier's value.
• Skipping the batch report. A TDS describes the product type; only a batch report shows what was actually produced.
• Assuming moisture protection. If the device is moisture-sensitive, shielding alone is not enough.
• Accepting damaged material. A scratched, torn, or delaminated bag can lose its shielding function. Inspect incoming lots and reject damaged material.

What to Include in Your ESD Shielding Bag RFQ

A clear RFQ makes it easy for a supplier to quote accurately and makes it harder for them to respond with a generic substitute. Include:

• Component type and sensitivity level (e.g., PCB assembly, IC, hybrid device).
• Required inside dimensions, thickness, and closure type.
• Required electrical values: surface resistance range, shielding performance, and static decay, each with the test method.
• Moisture-barrier requirement, if any.
• Cleanliness or cleanroom-class requirement, if packaging will be used in a controlled environment.
• Required documentation: TDS, batch test report, MSDS/SDS, and any certificates.
• Order quantity, packaging format, and delivery schedule.
• Lot-code and traceability requirements.
• Sample request for the exact construction you intend to order.

If the shielded components also need cushioning for transit, ask whether the supplier can recommend or supply compatible antistatic pe foam packaging supplier — bags and foam are often sourced together for the same shipment.

Summary: Choosing the Right Barrier for Sensitive Components

The right ESD shielding bag protects the component, fits the workflow, and comes with documentation that can be verified. The right manufacturer can explain the construction, state specifications with units and test methods, and provide batch-level evidence for the product you actually receive.

Use the verification steps in this guide before committing to a supplier. If you are comparing packaging options as part of a wider specification, review the materials available under esd safe materials to confirm that the rest of the packaging chain is as well controlled as the shielding bag itself.
