What Is Triboelectric Charging in Manufacturing?

What Is Triboelectric Charging in Manufacturing?

Triboelectric charging in manufacturing is the transfer of electric charge that occurs when two materials make contact and then separate. It happens whenever a plastic film peels off a liner, a roller releases a web, a conveyor belt lifts a component, or powder flows through a pipe: one surface becomes positively charged and the other becomes negatively charged. If either surface is an insulator, the charge can remain there and cause particle attraction, handling problems, or electrostatic discharge (ESD).

This article explains where triboelectric charge is generated on a production line, what makes the problem worse, and how to find and control the source. Because triboelectric charging is one of the main reasons ESD exists in manufacturing, it belongs inside a broader what is esd protection plan.

What Is Triboelectric Charging?

Triboelectric charging is contact electrification. It is a charge-generation mechanism, not the damage event itself. Static electricity is the charge that remains on a surface; ESD is the sudden flow of that charge when it finds a path to ground.

Friction is often blamed for static, but friction is not the actual requirement. As American Scientist explains, contact and separation alone are enough; rubbing simply repeats the contact many times and increases the chance of charge transfer.

Most explanations describe this as electron transfer between surfaces, and that model is useful for understanding material pairs. The exact physics is more complicated, though. An Electrostatics Society of America paper notes that electron, ion, and even mass-transfer mechanisms have all been proposed. For manufacturing purposes, the exact carrier matters less than the practical result: contact and separation moves charge, and insulating surfaces hold it.

Triboelectric charging is also different from induction charging, where a charged object causes charge redistribution in a nearby conductor without direct contact.

How Triboelectric Charging Happens on a Manufacturing Line

Any point where a material touches another material and then separates is a potential charging point. The highest-risk locations are usually the fastest separation points and the most insulating materials.

Powders deserve special attention. A review in Powder Technology found that triboelectric charging in powder handling can cause particle adhesion, deposition, and even fire or explosion hazards in the right conditions.

Even precise processes can be affected. Display-panel roller transfer has been studied as a triboelectric charging problem because the panel and roller continuously contact and separate.

Factors That Increase or Reduce Triboelectric Charging

The same process can behave differently from one day to the next because several variables control how much charge is generated and how long it remains.

• Material pair. Some material combinations charge more strongly than others. A triboelectric series gives a rough ordering, but it is guidance, not a guarantee. Surface condition, contamination, and contact history can change the result.
• Contact pressure and contact area. More intimate contact gives more opportunity for charge transfer.
• Separation speed. Faster peeling, unwinding, or conveying usually creates more charge. This is why films and liners are common sources.
• Surface condition. Roughness, oxidation, moisture, and chemical residues all affect how charge transfers.
• Relative humidity. Dry air allows charge to remain on insulating surfaces; humid air helps it decay. The same Electrostatics Society paper notes that material selection and relative humidity both affect charging. Humidity is not a universal cure, however, and many processes cannot simply raise humidity without causing other problems.
• Electrical isolation. A conductor that is not grounded can also hold charge, even though conductors normally allow charge to move. Grounding gives that charge a safe path away.

Why Triboelectric Charging Matters: ESD, Contamination, and Handling Problems

The charge itself is usually not the problem. The problem is what the charge does next.

In electronics manufacturing, triboelectric charging is one of the sources that can lead to ESD events during handling and assembly, as described in an NXP application note. The resulting damage can be immediate and visible, or it can be hidden and show up later as a field failure. That difference is covered in more detail in catastrophic vs latent esd damage.

Triboelectric charging can also occur during cleaning, when wipes, brushes, or dry materials contact and release surfaces. If cleaning itself is part of your process, how to prevent static damage during cleaning explains the specific risks.

How to Find the Charging Source on Your Line

Do not guess. Walk the line and measure.

1. Map every contact-and-separation event. List every point where a material touches a roller, belt, guide, liner, blade, or operator.
2. Highlight the insulating materials and the fastest separation points. These are the most likely sources.

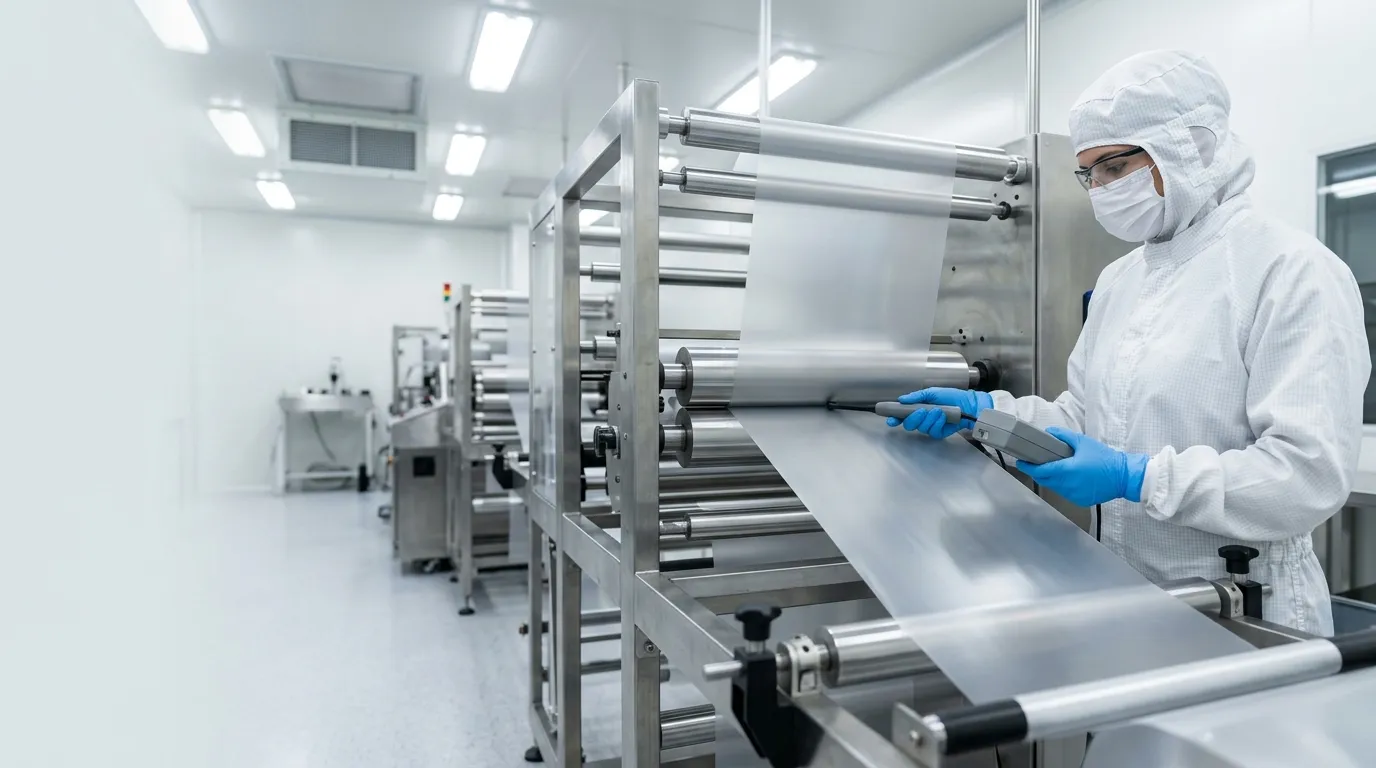

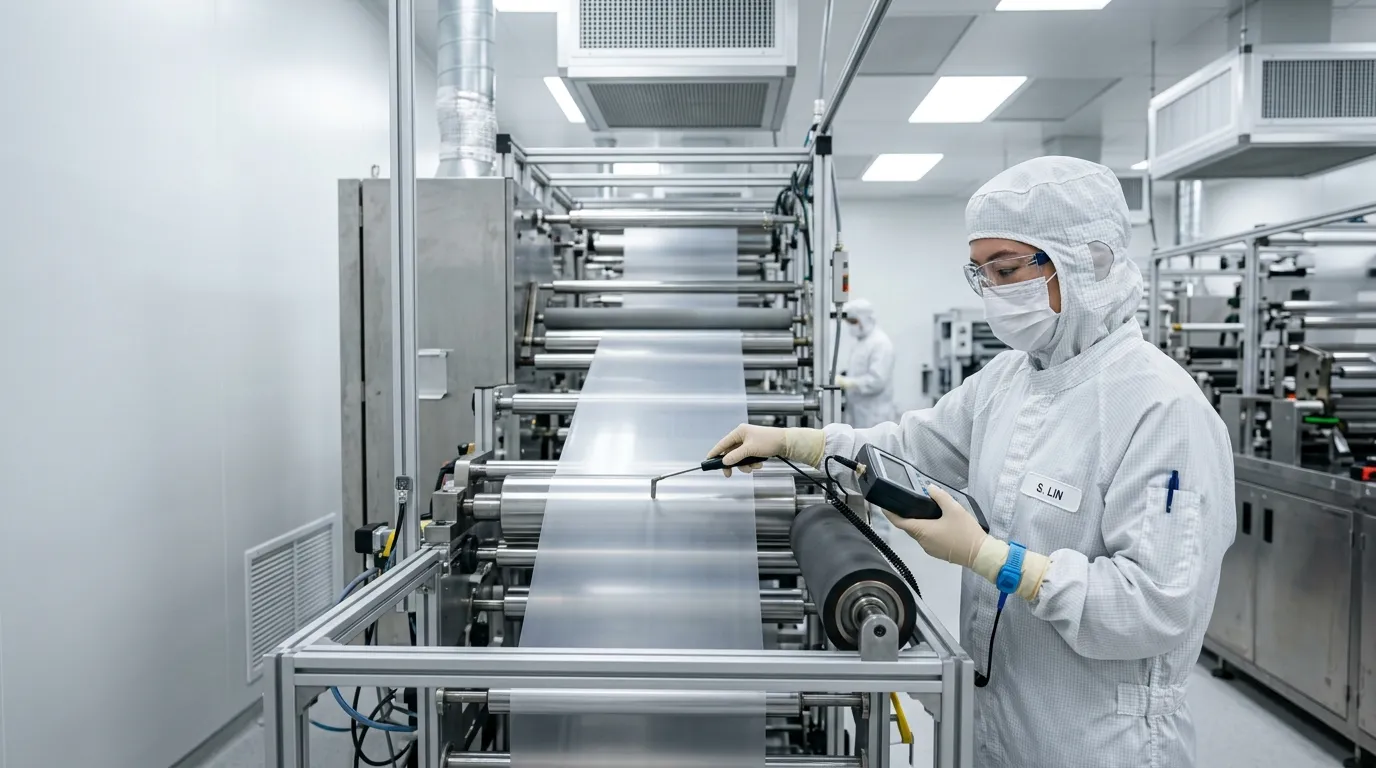

3. Measure electrostatic potential or field with a field meter. Keep the distance, angle, and environmental conditions consistent so the readings are comparable.
4. Change one variable at a time. Slow a roller, change a material, add a ground, or adjust humidity. Re-measure after each change.
5. Document before and after values. Include material names, line speed, humidity, and the measurement position.

Measurement beats prediction. A triboelectric series can tell you where to start looking, but it cannot tell you exactly what your line will do.

How to Control Triboelectric Charging

Control works best when you start at the source, then add a path for charge to leave, and finally neutralize what remains.

• Reduce charge generation. Choose material pairs that charge less strongly where possible. Reduce separation speed at critical points. Eliminate unnecessary contact and friction.
• Ground conductive and dissipative materials. Grounding removes charge from equipment, rollers, conveyors, and parts that can conduct. It works only when the charge can actually flow to ground.
• Ionize insulating surfaces. Grounding cannot remove charge from an insulating film because the charge cannot flow across the insulator to reach ground. An ionizing air blower for static control supplies ions of both polarities to neutralize the charge on the surface.
• Manage humidity where the process allows it. Higher humidity supports charge decay, but it is not a replacement for grounding or ionization.
• Validate the fix with measurement. A control that sounds correct is not enough. Measure before and after to confirm that the charge is actually gone.

Static control is about managing charge, not eliminating every electron of it. The goal is to keep charge below the level that causes contamination, handling defects, or ESD.

What to Ask a Supplier: TDS, Test Reports, and Certifications

When you choose a static-control material, the documentation matters as much as the product description.

Check the units carefully. Surface resistance is expressed in ohms; surface resistivity is expressed in ohms/square. They are not interchangeable. A tack figure is meaningful only with its test width and method, while a proprietary adhesive-grade number is not the same as a measured peel adhesion. Film thickness can be given in micron or mil, and layer count is not the same as sheet count. Ask for the test method and the unit before comparing products.

Also remember that “ESD-safe” usually describes a material’s electrical behavior. It does not mean the material cannot generate triboelectric charge. Every material can charge when it contacts and separates from another material.

Nabai Product Context: Static-Control Consumables on Your Line

Triboelectric charging is rarely solved by one product. The practical approach is to reduce generation, add a discharge path, and use ionization where needed.

Nabai supplies cleanroom and ESD consumables for semiconductor, electronics, medical-device, and precision-manufacturing industries. One product example is directly relevant to the contact-and-separation problems described above.

Nabai’s anti static sticky roller is described as a roller that removes dust and reduces static buildup on sensitive equipment or work surfaces. Nabai also offers an anti-static sticky mat with a grounding cord connected to a verified ground point for grounded contamination control at entry points.

These product pages describe specific models. Check the current specifications against your process conditions before choosing a product, and remember that a sticky roller or mat is one control point, not a complete static-control program.

Final Summary

Triboelectric charging is not a random nuisance. It follows from contact and separation: look first at rollers, conveyors, films, liners, and powder handling. Measure the suspected source before spending money on controls. Then reduce generation, ground what can be grounded, and ionize what cannot.

Supplier documentation should state test methods and units clearly, and where possible include a batch test report for the actual material. If you also need to understand how static damage appears after the discharge, the difference between catastrophic vs latent esd damage explains the consequences.
